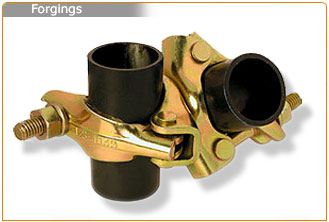

Double Coupler (Forged) |
|
Double
Coupler provides a strong, positive grip when connecting
tubes at 90 degrees and ensures maximum safety in load
bearing situations. |
|
Weight :: |
1.050kg |
|
|
 |
|

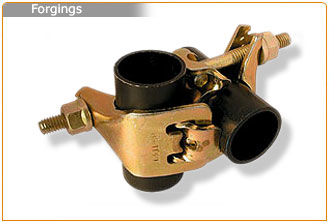

Swivel Coupler (Forged) |
|
Swivel Couplers feature the same strong, positive grip
as the Double Couplers. They enable two tubes to be
connected at any angle. |
|
Weight :: |
1.175kg |
|
|
|
|
|
|
|
| |
|
|
|
|
| |
| |
 |
|

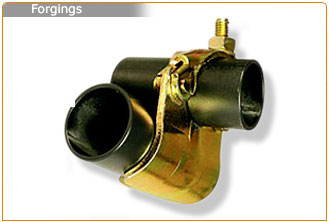

Putlog / Single
Coupler (Forged Clip) |
|
Designed to rigidly secure putlogs to horizontal ledger
tubes enabling scaffold boards to Tie flat on top of
tube. Features one-piece design with single swing over
bolt which automatically secure putlog and ledger tube. |
|
Weight :: |
0.650kg |
|
|
 |
|

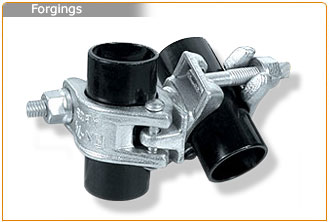

Swivel Coupler (Pressed) |
|
For connecting 40mm NB tubes at any angle to other
tubes, ledgers or props for diagonal bracing. |
|
Size :: |
48.3 x 48.3 mm O.D., 48.3 x 60.3 mm O.D. |
|
Weight :: |
1kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

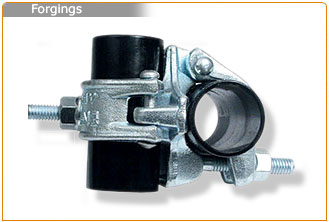

Double Coupler (Pressed) |
|
For connecting 40mm NB tubes at 90
degree angle to other tubes, ledgers or props |
|
Size :: |
48.3 x 48.3 mm O.D., 48.3 x 60.3 mm O.D. |
|
Weight :: |
0.950kg |
|
|
 |
|
Girder
Coupler (Forged Clip) |
|
Design to save time and effort, the Girder Coupler
enables fast and secure coupling of scaffold tube to an
RSJ beam. Used on only flange up to 45 mm thick. |
|
Weight :: |
1.400kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
 |
|
