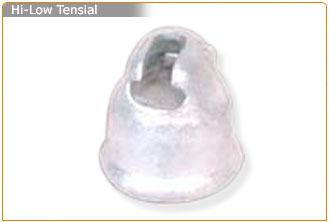

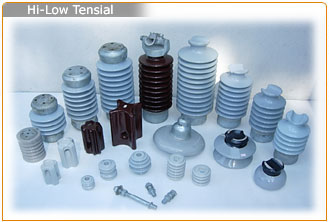

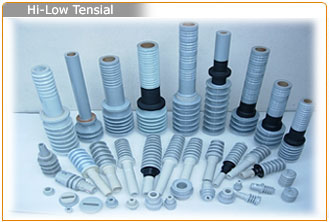

Disc Insulator Cap B & S
Type |
|
DESCRIPTION |
STD |
|
Total Height :: |
97.5 |
|
Socket Length :: |
30.0 |
|
Window Width Inside :: |
17-18 |
|
Window Width Outside :: |
33 Min. |
|
Window Height :: |
9.5 |
|
Inner Dia :: |
82 |
|
Inside Dia :: |
75 |
|
Weight (Kg) :: |
1.1 |
|
Socket Go guage (IS 2486 Fig. 16) :: |
GO |
|
Socket Moving Go Guage (IS 2486 Fig. 17) :: |
GO & Moving |
|
Marking :: |
-- |
|
Load :: |
70 kN |
|
W-Clip Locking Position :: |
|
|
Remarks :: |
|
|
|
 |
|
22 KV POST CAP |
|
DESCRIPTION |
STD |
|
Total
Height :: |
55 |
|
Top Dia :: |
102 |
|
Bottom Dia :: |
99 |
|
Hole Dia :: |
12 |
|
Thread
Length :: |
20 |
|
PCD :: |
76 + - 0.5 |
|
Inner Dia :: |
85 |
|
Depth :: |
35 |
|
Weight (kg) :: |
1.1 |
|
Thread
Checking By Bolt :: |
-- |
|
Marking :: |
-- |
|
Remarks :: |
|
|
|
|
|
|
|
|
|
|
|
|
