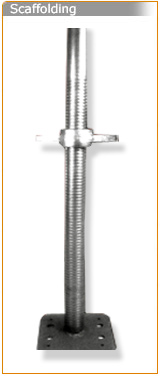

| ADJUSTABLE BASE JACK (Pipe OD 38 mm) |
| Tl/Al (Mtr) |
Wt.(Kg) |
| 0.450/0.350 |
2.06 |
| 0.550/0.450 |
2.95 |
| 0.650/0.550 |
3.30 |
| 0.750/0.650 |
3.70 |
|
|
| ADJUSTABLE BASE JACK (Pipe OD 34 mm) |
| Tl/Al (Mtr) |
Wt.(Kg) |
| 0.450/0.350 |
2.45 |
| 0.550/0.450 |
2.75 |
| 0.650/0.550 |
3.10 |
| 0.750/0.650 |
3.40 |
|
|
| ADJUSTABLE BASE JACK (Solid O 32 mm) |
| Tl/Al (Mtr) |
Wt.(Kg) |
| 0.500/0.400 |
4.60 |
| 0.600/0.500 |
5.35 |
| 0.800/0.700 |
6.70 |
| 0.750/0.800 |
8.12 |
|
Base Size 150 x 150 x 6 (mm) Tl-Total Length Al-Adjustable Length |
|
| |
| |
|
| |
|
|
|
| |

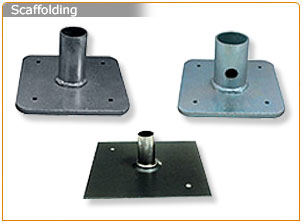

| BASE PLATES |
| Size |
| 150 X 150 X 6 MM |
Pipe : 48.3mm, H-100mm |
| 150 X 150 X 2.5 MM |
Strip : W-25mm, H-50mm, T-4mm |
| 150 X 150 X 2.5 MM |
Pipe : 22.7mm, H-50mm |
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
| |
|
  |
|
